Automatic 3-in-1 Mineral Water Filling Machine 8000BHP 500ml

Product Categories
Sunrise Intelligent Equipment Co., Ltd
Contact Now

Automatic 3-in-1 Mineral Water Filling Machine 8000BHP 500ml

Brand Name : SUNRISE

Certification : EcoVadis audit, UL certification, SGS certification, Sedex certification, European Union PED, American ASME, German TUV, Russian GOST, European Union ATEX, Australia AS1210, CE, ISO

Place of Origin : Jiangsu, China

MOQ : 1

Price : According to the project

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 6 months

Packaging Details : Standard shipping wooden box or stretch film packaging

Model Number : KSCGF

Supply Ability : 6 sets per year

gravity filling Production capacity : 8000-36000 BHP 500ml

Bottle Sizes： : 500ml ~2000ml

KSCGF Wash-filling-capping 3-in-1unit : Beverage Machinery is employed to supply polyester bottled drinking water, purified water, alcohol machinery and other non-gas beverage machinery. Beverage Machinery can finish all the method like washing bottle, filling and sealing, it can reduce the mate

Application : still water, pure water, RO water, mineral water, sparkling water, alcoholic drinks, wine, etc

Bottle : PET bottle

Contact Now

Automatic 3-in-1 Mineral Water Filling Machine 8000-36000BHP (KSCGF)For:
8000-36000 bottles/hour, fully automatic production
Bottle: PET bottle
Provide 1 year warranty service
Automatic 3-in-1 Mineral Water Filling Machine 8000BHP 500ml

Model KSCGF06 KSCGF08A KSCGF32A KSCGF40A KSCGF40B KSCGF50A KSCGF60B KSCGF72A KSCGF60A
Heads 18-18-6 24-24-8 32-32-8 40-40-12 48-40-12 50-50-15 60-60-15 72-72-18 60-60-20
Capacity (BPH) 8000 12000 15000 18000 20000 24000 27000 32000 36000
Suitable bottle φ=50-97mm H=150-320mm,V=500-1500ml
Motor power 8kw 9kw 6kw 8.62kw 9kw 9.27kw 10kw 11kw 11kw
Dimension
(L*W*H)(mm)		 2500*
1200*
2300		 2800x
2200x
2300		 3360*
2540*
2500		 3550*
3250*
2500		 3550*
3250*
2500		 5000*
4100*
2800

5700*

4600*

2900

6600*

5100*

2900

 5800*
4500*
2500
Weight(kg) 4000 6000 7200 11000 11000 8000 10000 12000 15000

Automatic 3-in-1 Mineral Water Filling Machine 8000BHP 500ml
We design a suitable mineral water filling solution for you.

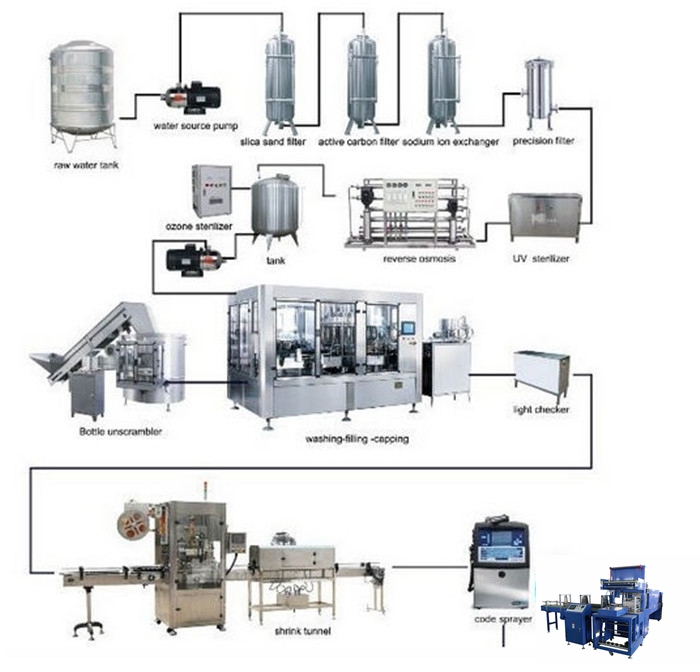

In order to have a better understanding of the entire system. You can refer to the flow chart of the entire production line below.

1. Water treatment system
The raw water can be from well water, tap water, or river water. After passing through our water treatment system, the water quality standards you need can be reached.
We need to design the entire system based on the raw water quality report. So please prepare a water quality report in advance.
Raw water——Raw water pump——Multi-media filter——Activated carbon filter——Precision filter——Ultraviolet sterilizer——Reverse osmosis water treatment equipment. This is a conventional system. Our engineers will accurately design the entire system based on the customer's local raw water quality report.
Our responsibility is to make healthy and safe water for your customers

Automatic 3-in-1 Mineral Water Filling Machine 8000BHP 500ml

2. Mineral water filling system
This is usually used for mineral water, pure water. (Glass and PET bottles)
Three-in-one filling machine. Realize automatic bottle washing, filling and capping functions on one machine. PLC control of all systems.

4. Mineral water packaging system.
1. Barcode printer: used to print the date
2. Automatic sleeve label shrinking machine.
3. Automatic shrink film packaging machine.
Automatic 3-in-1 Mineral Water Filling Machine 8000BHP 500ml

Configurations of water filling machine:

Name Supplier
PLC SIemens
Touch screen weinvew
Frequency converter Danfoss
Air switch,circuit breaker contactor Schneider
Photoeleceric switch SICK
Proximity switch SICK
Intermediate relay Schneider
Temperature control,pressure meter Omron
Main motoe Zhejiang Tongli
Main bearing harbin
Lubrication bearing Harbin
Seal component Han sheng
Pneuamatic componenr Airtac
Bottle washing pump Nan fang Pump

Automatic 3-in-1 Mineral Water Filling Machine 8000BHP 500mlAutomatic 3-in-1 Mineral Water Filling Machine 8000BHP 500mlAutomatic 3-in-1 Mineral Water Filling Machine 8000BHP 500mlAutomatic 3-in-1 Mineral Water Filling Machine 8000BHP 500ml
